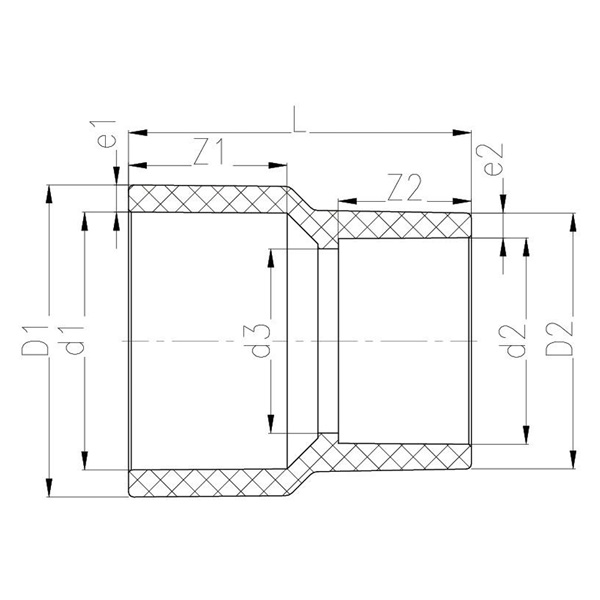

| Dimensión de conexión principal del reductor FRPP |
| DN | D | D1 | d | d1 | l | Z1 | Z2 |
| DN20X15 | 33.5 | 28 | 25 | 20 | 46 | 19 | 16 |
| DN25X20 | 40.5 | 33 | 32 | 25 | 55 | 22 | 19 |
| DN32X25 | 50.5 | 40 | 40 | 32 | 68 | 26 | 22 |
| DN40X25 | 63 | 40 | 50 | 32 | 74.5 | 31 | 22 |
| DN40X32 | 63 | 50 | 50 | 40 | 80.5 | 31 | 29 |
| DN50X25 | 75 | 44 | 63 | 32 | 82 | 38 | 22 |
| DN50X32 | 75 | 50 | 63 | 40 | 87 | 38 | 26 |
| DN50X40 | 75 | 62 | 63 | 50 | 93 | 38 | 31 |
| DN65X32 | 90 | 50 | 75 | 40 | 98 | 44 | 26 |
| DN65X40 | 90 | 62 | 75 | 50 | 104 | 44 | 31 |
| DN65X50 | 90 | 75 | 75 | 63 | 110 | 44 | 38 |
| DN80X40 | 104 | 62 | 90 | 50 | 107 | 51 | 31 |
| DN80X50 | 104 | 75 | 90 | 63 | 115 | 51 | 38 |
| DN80X65 | 104 | 88 | 90 | 75 | 126 | 51 | 44 |
| DN100X50 | 126 | 75 | 110 | 63 | 138 | 61 | 38 |
| DN100X65 | 126 | 90 | 110 | 75 | 144 | 61 | 44 |
| DN100X80 | 126 | 106 | 110 | 90 | 150 | 61 | 51 |
| DN125X80 | 161 | 106 | 140 | 90 | 168 | 76 | 51 |
| DN125X100 | 161 | 126 | 140 | 110 | 182 | 76 | 66 |
| DN150X80 | 182 | 106 | 160 | 90 | 175 | 86 | 51 |
| DN150X100 | 182 | 126 | 160 | 110 | 188 | 86 | 64 |
| DN150X125 | 182 | 162 | 160 | 140 | 210 | 86 | 76 |
| DN200X80 | 248 | 106 | 225 | 90 | 210 | 110 | 66 |
| DN200X100 | 248 | 126 | 225 | 110 | 220 | 111 | 70 |
| DN200X150 | 248 | 182 | 225 | 160 | 258 | 119 | 86 |
| DN250X200 | 300 | 248 | 280 | 225 | 240 | 110 | 90 |
| DN300X250 | 344 | 300 | 315 | 280 | 260 | 120 | 110 |
| DN350X300 | 385 | 344 | 355 | 315 |
| 184 | 120 |
| DN400X350 | 452 | 385 | 400 | 355 |
| 230 | 184 |
| DN450X400 | 495 | 452 | 450 | 400 |
| 231 | 230 |
| DN500X450 | 540 | 495 | 500 | 450 |
| 256 | 231 |
| DN600X500 | 678 | 540 | 630 | 500 |
| 321 | 256 |
