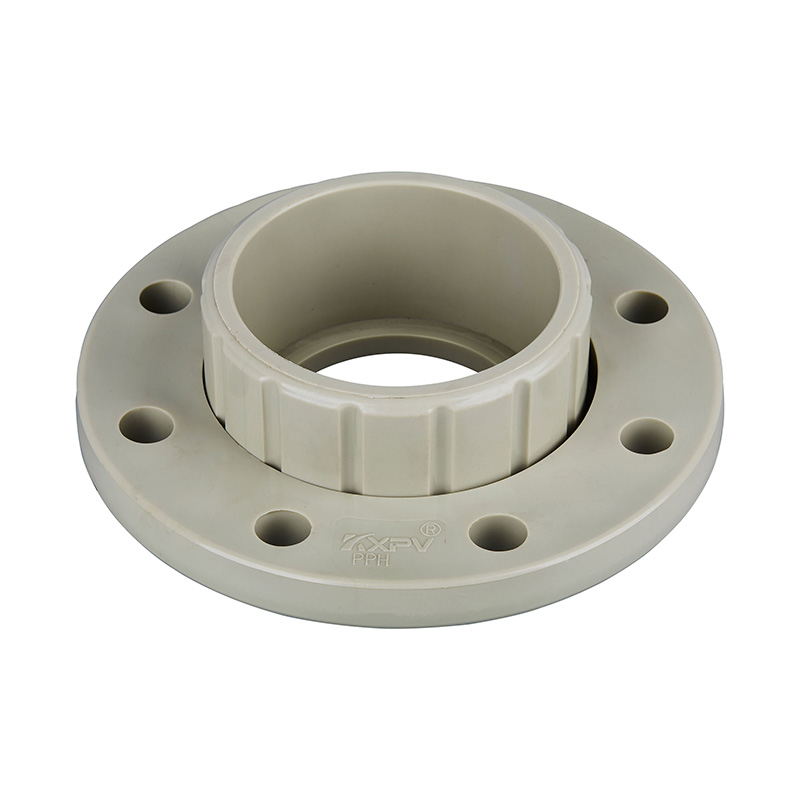

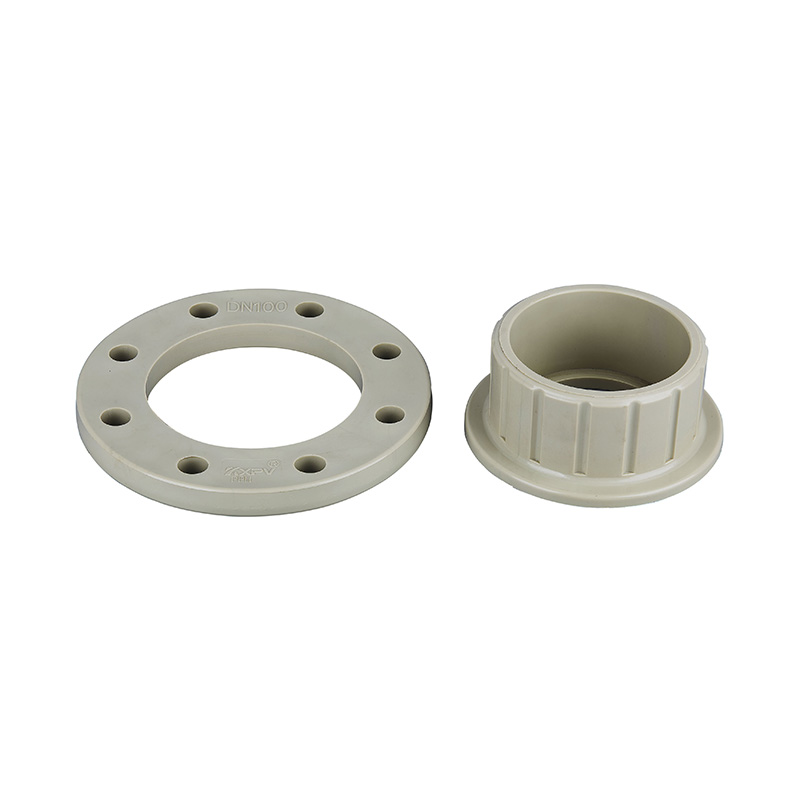

Dimensión de conexión principal de brida de piedra de furgoneta PPH |
![](/plasticpipevalve/2021/08/20/pph-van-stone-flange.jpg?imageView2/2/format/jp2)
DN | D | D1 | d | S | L1 | n-Φe |
15 | 65 | 95 | 20 | 2.5 | 12 | 4-Φ14 |
20 | 75 | 105 | 25 | 2.7 | 12 | 4-Φ14 |
25 | 85 | 115 | 32 | 3.0 | 16 | 4-Φ14 |
32 | 100 | 140 | 40 | 3.7 | 20 | 4-Φ18 |
40 | 110 | 150 | 50 | 4.6 | 20 | 4-Φ18 |
50 | 125 | 165 | 63 | 5.8 | 20 | 4-Φ18 |
65 | 145 | 185 | 75 | 6.9 | 20 | 4-Φ18 |
80 | 160 | 200 | 90 | 8.2 | 20 | 8-Φ18 |
100 | 180 | 220 | 110 | 10.0 | 20 | 8-Φ18 |
125 | 210 | 250 | 140 | 12.8 | 22 | 8-Φ18 |
150 | 240 | 285 | 160 | 14.6 | 22 | 8-Φ23 |
200 | 295 | 340 | 225 | 20.5 | 24 | 8-Φ23 |
250 | 350 | 395 | 280 | 25.5 | 26 | 12-Φ23 |
300 | 400 | 445 | 315 | 28.7 | 42.5 | 12-Φ23 |
350 | 476 | 535 | 355 | 32.5 | 43 | 16-Φ23 |
400 | 515 | 565 | 400 | 36.4 | 60 | 16-Φ26 |
450 | 565 | 615 | 450 | 41 | 70 | 20Φ26 |
500 | 620 | 670 | 500 | 45.5 | 75 | 20-Φ26 |
600 | 725 | 780 | 630 |
| 80 | 20-Φ30 |
